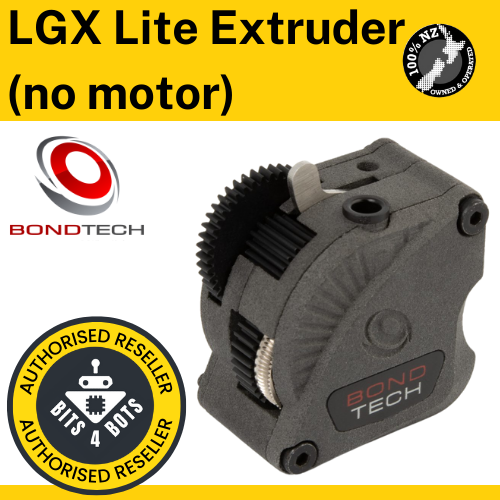

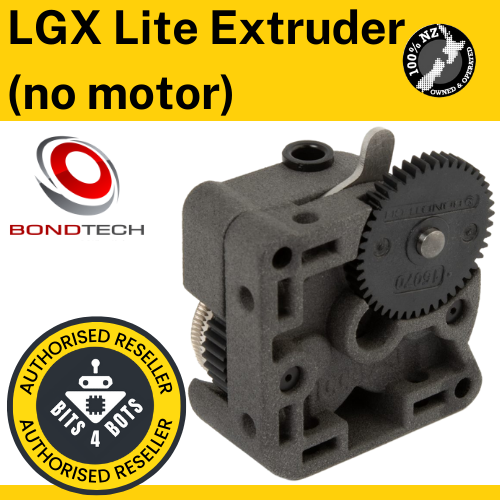

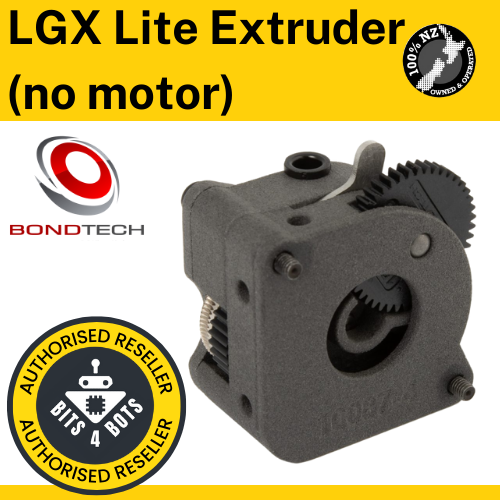

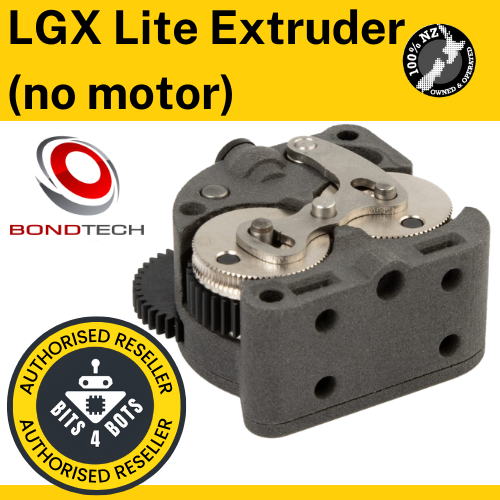

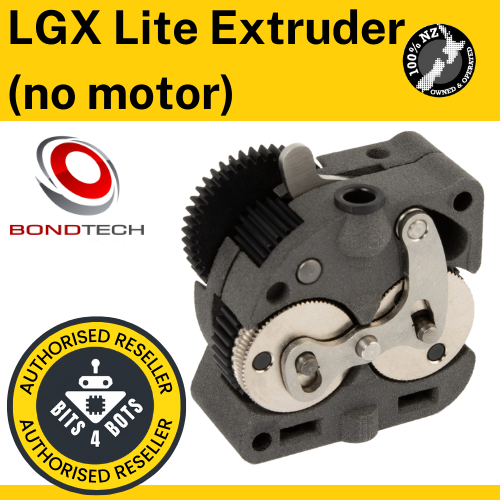

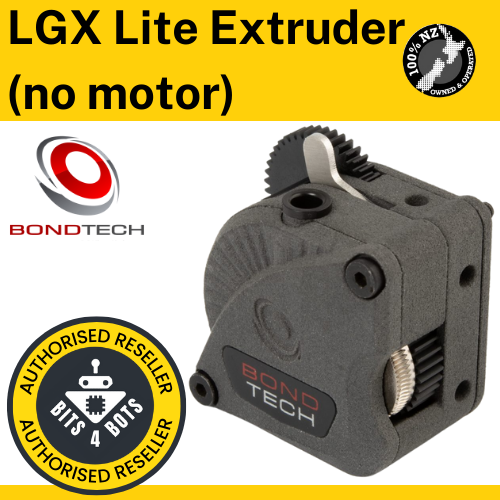

Bondtech LGX Lite Extruder (no motor)

micro form factor
featherweight (48g)
small footprint
enhanced filament grip.

Includes full size LGX Large Gears, maintenance windows and filament tension lever with 3 presets (open; rigid; flexible).

This extruder only supports 1.75 mm size filament.

IMPORTANT NOTICE

Use the LGX Lite only with a 36mm round stepper motor featuring a 10 teeth motor gear like this:

Otherwise you may cause damages in the extruder that are NOT covered by warranty.

The Bondtech LGX® Lite is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtech’s new Dual Drive Technology based on larger drive gears.

Each LGX Lite extruder is supplied with:

• 1x LGX® Lite feeder;
• 1x 2mm Hex Key (recommended tool);
• 1x Powered By Bondtech sticker.

8 features of this Bondtech eXtruder:

• Larger drive wheels, for increased filament grip;
• Filament pre-tension lever, for repeated results;
• Drive wheels’ maintenance windows, for easy cleaning;
• Compact, light & centered filament path, for increased performance and compatibility;
• Multiple mounting hole patterns, for easy and flexible setup;
• Compatible with Nema14 round stepper motors;
• Craft boxes without bleaching & no coating.
• Nylon housing with no dyeing or other chemical post processing.

3D Printed Housing using PA12

The housing parts are professionally printed with polyamide 12 for maximum strength, precision and higher temperature resistance.

To lower our ecological impact we are reducing our use of chemical dyes. This part is supplied with a wax protective coating to lower sensitivity to moisture and grease, while remaining fully functional.

DISCLAIMER: BITS4BOTS LIMITED nor any of its Subsidiaries has any material liability (whether known or unknown, whether asserted or unasserted, whether absolute or contingent, whether accrued or unaccrued, whether liquidated or unliquidated, and whether due or to become due) arising out of any injury to individuals or property as a result of the ownership, possession or use of any product manufactured, sold, leased or delivered by BITS4BOTS LIMITED or any of its Subsidiaries.

For more information, follow the link below
https://www.bondtech.se/product/lgx-lite-extruder-no-motor/
