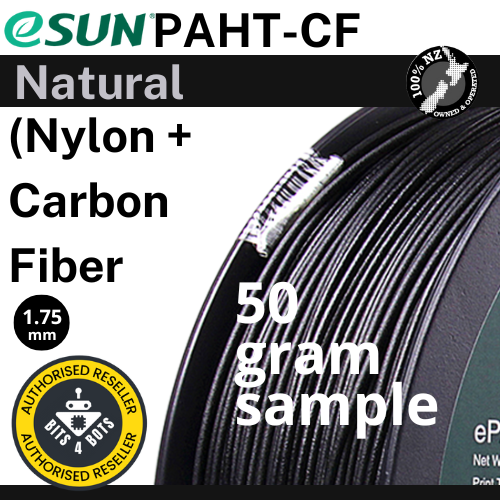

Sample - eSun ePAHT-CF (Nylon + Carbon Fiber) 1.75mm Filament
Sample - eSun ePAHT-CF (Nylon + Carbon Fiber) 1.75mm Filament
Couldn't load pickup availability
Want to try a colour or material first before you commit to a full roll? Here is your chance to get a 50 gram sample of it first to give it a go.
- These are off cuts from a full spool so do have a tendency to tangle. We recommend re spooling them onto an old spool.
- These spools are exposed to moisture. We recommend drying the filament out first before use.
Samples not available for discount
A material based on PA6 developed by eSUN and LUVOCOM, added 15% high-rigidity carbon fiber, high-strength, high-rigidity, mechanical and thermal properties are higher than other eSUN nylon series products; it can be substituted in many occasions Metal use; the continuous use temperature of the parts can reach 150℃, and the short-term use temperature can reach 180℃; low shrinkage, not easy to warp and crack during printing, the surface of the printed item Matte and delicate.
A material based on PA6 developed by eSUN and LUVOCOM, added 15% high-rigidity carbon fiber, high-strength, high-rigidity, mechanical and thermal properties are higher than other eSUN nylon series products; it can be substituted in many occasions Metal use; the continuous use temperature of the parts can reach 150℃, and the short-term use temperature can reach 180℃; low shrinkage, not easy to warp and crack during printing, the surface of the printed item Matte and delicate.
Sellingpoint
High strength
High toughness
High rigidity
High impact resistance
Chemical resistance
Heat resistance
Abrasion resistance
Matte surface effect
Excellent printability
Notes
1. ePAHT-CF needs to be dried (70℃/＞12H) before printing to achieve the best printing effect. It is recommended to use it with the eBOX cartridge when printing.
2. The ePAHT-CF line has strong rigidity and is not easy to bend. In the feeding pipe, excessive bending of the wire should be avoided as much as possible.
3. ePAHT-CF is very easy to grind nozzles and extruder gears. It is recommended to use hardened steel nozzles or ruby nozzles. If conditions permit, you can choose hardened steel extruder gears. If the printing time is long, you need to replace the throat and nozzles.
4. It is recommended to set the skirt to make it better for taking the model from the forming plate.
Product Features：
【Carbon Fiber Filled Nylon】On the basis of the performance of PA6, 15% high rigidity carbon fiber is added, high strength, high rigidity, impact resistance, self-lubricating wear resistance, excellent chemical resistance, high temperature resistance. Compatible with Most of 3D Printers.
【Stable Dimensional Tolerance】Minimum tolerance and low warping to ensure consistent feeding and stable prints, no clogging, extremely high successful rate, resulting in printed parts that have an outstanding surface finish and are highly precise.
【Tangle Free & No Plugging】Full 0.75KG 3D printer filament reel, perfect roundness and very tight diameter tolerance, does not overlap or tangle. Melt well, no cracking, no bubbles. feed smoothly and constantly without clogging the nozzle or extruder.
【Wide Application】It features with higher strength and rigidity, less warpage and more resistant to wear comparing to the traditional nylon filament. Suitable for strong and flexible industrial parts, prosthetics, medical equipment and complex costumes etc.
【Vacuumed Sealed Packaging】Net Weight: 0.75KG. eSUN filament comes in a sealed vacuum bag with a desiccant bag to keep it dry and keep out dust and foreign particles, prevent nozzle jams and yield smooth 3D models.
| Filament Properties Table | |
|---|---|
| 3D PRINTING FILAMENT | ePAHT-CF |
| Density(g/cm3) | 1.4 |
| Heat Distortion Temp(℃,0.45MPa) | 190 |
| Melt Flow Index(g/10min) | 19.68(270℃/2.16kg) |
| Tensile Strength(MPa) | 173.37 |
| Elongation at Break(%) | 8.93 |
| Flexural Strength(MPa) | 171.64 |
| Flexural Modulus(MPa) | 5612.41 |
| IZOD Impact Strength(kJ/m2) | 12.74 |
| Durability | 10/10 |
| Printability | 8/10 |
| Recommended printing parameters | |
| Extruder Temperature(℃) | 260 – 300℃ Recommended temperature：280℃ |
| Bed temperature(℃) | 45 – 60°C |
| Fan Speed | 0% |
| Printing Speed | 40 – 100mm/s |
| Heated Bed | Optional |
| Recommended Build Surfaces | Masking paper, PVP solid glue, PEI |
